Here’s a scenario that’ll be depressingly familiar to most reading this: after ages of running fine, and no changes to the code, a query suddenly starts running for magnitudes longer than it used to.

In this instance it was an ETL step which used to take c.1 hour, and was now at 5 hours and counting. Since it still hadn’t finished, and the gods had conspired to bring down Grid too (unrelated), I generated a SQL Monitor report to see what was happening: [sourcecode language=“sql”] select DBMS_SQLTUNE.REPORT_SQL_MONITOR( type=>‘HTML’, report_level=>‘ALL’,sql_id=>‘939abmqmvcc4d’) as report FROM dual; [/sourcecode] (h/t to Martin Berger for this)

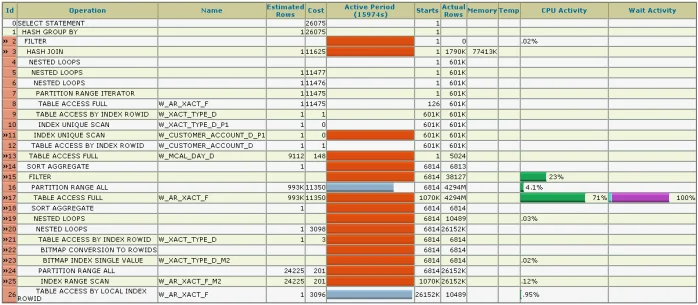

It showed a horrendous explain plan:

Using Kerry Osborne’s script to look at the plan_hash_value over time from AWR, it was clear that the CBO had picked a new, bad, explain plan.

So we knew the sql_id, and we knew the plan_hash_value of the plan which we wanted the CBO to use. But how to do this?

Back to Kerry Osborne again, and his article about SQL Plan Baselines. He (and others) write in detail about how and what SQL Plan Baselines are, but in essence it lets you tell Oracle which plan to use (or optionally, prefer) for a given sql_id.

Since the desired plan_hash_value was no longer in the cursor cache, we could get it back from AWR, loaded in via a SQL Tuning Set. Here’s the code with in-line comments explaining the function of each block: [sourcecode language=“sql”] /* Set up a SQL Baseline using known-good plan, sourced from AWR snapshots http://rnm1978.wordpress.com/

In this example, sql_id is 939abmqmvcc4d and the plan_hash_value of the good plan that we want to force is 1239572551 */

-- Drop SQL Tuning Set (STS) BEGIN DBMS_SQLTUNE.DROP_SQLSET( sqlset_name => ‘MySTS01’); END;

-- Create SQL Tuning Set (STS) BEGIN DBMS_SQLTUNE.CREATE_SQLSET( sqlset_name => ‘MySTS01’, description => ‘SQL Tuning Set for loading plan into SQL Plan Baseline’); END;

-- Populate STS from AWR, using a time duration when the desired plan was used – List out snapshot times using : SELECT SNAP_ID, BEGIN_INTERVAL_TIME, END_INTERVAL_TIME FROM dba_hist_snapshot ORDER BY END_INTERVAL_TIME DESC; – Specify the sql_id in the basic_filter (other predicates are available, see documentation) DECLARE cur sys_refcursor; BEGIN OPEN cur FOR SELECT VALUE(P) FROM TABLE( dbms_sqltune.select_workload_repository(begin_snap=>22673, end_snap=>22710,basic_filter=>‘sql_id = ‘‘939abmqmvcc4d’’’,attribute_list=>‘ALL’) ) p; DBMS_SQLTUNE.LOAD_SQLSET( sqlset_name=> ‘MySTS01’, populate_cursor=>cur); CLOSE cur; END; /

-- List out SQL Tuning Set contents to check we got what we wanted SELECT first_load_time , executions as execs , parsing_schema_name , elapsed_time / 1000000 as elapsed_time_secs , cpu_time / 1000000 as cpu_time_secs , buffer_gets , disk_reads , direct_writes , rows_processed , fetches , optimizer_cost , sql_plan , plan_hash_value , sql_id , sql_text FROM TABLE(DBMS_SQLTUNE.SELECT_SQLSET(sqlset_name => ‘MySTS01’) );

-- List out the Baselines to see what’s there SELECT * FROM dba_sql_plan_baselines ;

-- Load desired plan from STS as SQL Plan Baseline – Filter explicitly for the plan_hash_value here if you want DECLARE my_plans pls_integer; BEGIN my_plans := DBMS_SPM.LOAD_PLANS_FROM_SQLSET( sqlset_name => ‘MySTS01’, basic_filter=>‘plan_hash_value = ‘‘1239572551’’’ ); END; /

-- List out the Baselines SELECT * FROM dba_sql_plan_baselines ; [/sourcecode]

Now when the query’s run, it will use the desired plan.

Things to note:

References:

Thanks to John Hallas for his help with this problem.
