In this mini-series of blog posts I’m taking a look at a few very useful tools that can make your life as the sysadmin of a cluster of Linux machines. This may be a Hadoop cluster, or just a plain simple set of 'normal' machines on which you want to run the same commands and monitoring.
First we looked at using SSH keys for intra-machine authorisation, which is a pre-requisite executing the same command across multiple machines using PDSH, as well as what we look at in this article - monitoring OS metrics across a cluster with colmux.
Colmux is written by Mark Seger, the same person who wrote collectl. It makes use of collectl on each target machine to report back OS metrics across a cluster to a single node.
Install collectl across the cluster 🔗
Using pdsh we can easily install collectl on each node (if it’s not already), which is a pre-requisite for colmux:
pdsh -w root@rnmcluster02-node0[1-4] "yum install -y collectl && service collectl start && chkconfig collectl on"NB by enabling the collectl service on each node it will capture performance data to file locally, which colmux can replay centrally.
Then install colmux itself, which you can download from Sourceforge. It only needs to be actually installed on a single host, but obviously we could push it out across the cluster with pdsh if we wanted to be able to invoke it on any node at will. Note that here I’m running it on a separate linux box (outside of the cluster) rather than on my Mac:
cd /tmp
# Make sure you get the latest version of collectl-utils, from https://sourceforge.net/projects/collectl-utils/files/
# This example is hardcoded to a version and particular sourceforge mirror
curl -O http://garr.dl.sourceforge.net/project/collectl-utils/collectl-utils-4.8.2/collectl-utils-4.8.2.src.tar.gz
tar xf collectl-utils-4.8.2.src.tar.gz
cd collectl-utils-4.8.2
sudo ./INSTALL
# collectl-utils also includes colplot, so if you might want to use it restart
# apache (assuming it's installed)
sudo service httpd restartColmux and networking 🔗
Couple of important notes:
-
The machine you run colmux from needs to have port 2655 open in order for each node’s collectl to send back the data to it.
-
You also may encounter an issue if you have any odd networking (eg NAT on virtual machines) that causes colmux to not work because it picks the ‘wrong’ network interface of the host to tell collectl on each node to send its data to. Details and workaround here.

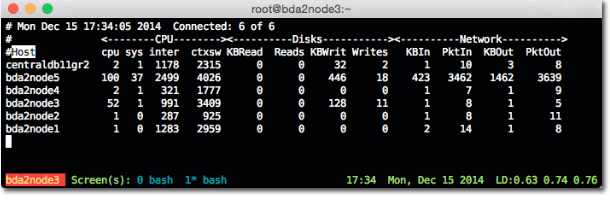

colmux in action – real-time view, point in time 🔗
Command
colmux -addr 'rnmcluster02-node0[1-4]' -username rootOutput
# Mon Dec 1 22:20:40 2014 Connected: 4 of 4
# <--------CPU--------><----------Disks-----------><----------Network---------->
#Host cpu sys inter ctxsw KBRead Reads KBWrit Writes KBIn PktIn KBOut PktOut
rnmcluster02-node01 1 1 28 36 0 0 0 0 0 2 0 2
rnmcluster02-node04 0 0 33 28 0 0 36 8 0 1 0 1
rnmcluster02-node03 0 0 15 17 0 0 0 0 0 1 0 1
rnmcluster02-node02 0 0 18 18 0 0 0 0 0 1 0 1Real-time view, persisted 🔗

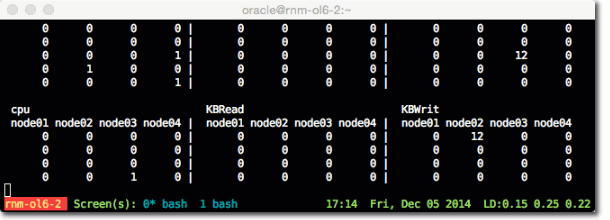

-cols puts the hosts across the top and time as rows. Specify one or more columns from the output without -cols. In this example it is the values for cpu value, along with the disk read/write (columns 1, 5 and 7 of the metrics as seen above):
Command
colmux -addr 'rnmcluster02-node0[1-4]' -user root -cols 1,5,7Output
cpu KBRead KBWrit
node01 node02 node03 node04 | node01 node02 node03 node04 | node01 node02 node03 node04
0 0 0 0 | 0 0 0 0 | 12 28 0 0
0 0 0 0 | 0 0 0 0 | 12 28 0 0
1 0 1 0 | 0 0 0 0 | 0 0 0 0
0 0 0 0 | 0 0 0 0 | 0 0 0 0
0 0 0 0 | 0 0 0 0 | 0 0 0 0
0 0 0 0 | 0 0 0 0 | 0 20 0 0
0 0 0 0 | 0 0 0 0 | 52 4 0 0
0 0 0 2 | 0 0 0 0 | 0 0 0 0
1 0 0 0 | 0 0 0 0 | 0 0 0 0
15 16 15 15 | 0 4 4 4 | 20 40 32 48
0 0 1 1 | 0 0 0 0 | 0 0 4 0
1 0 0 0 | 0 0 0 0 | 0 0 0 0
To check the numbers of the columns that you want to reference, run the command with the --test argument:
colmux -addr 'rnmcluster02-node0[1-4]' -user root --test
>>> Headers <<<
# <--------CPU--------><----------Disks-----------><----------Network---------->
#Host cpu sys inter ctxsw KBRead Reads KBWrit Writes KBIn PktIn KBOut PktOut
>>> Column Numbering <<<
0 #Host 1 cpu 2 sys 3 inter 4 ctxsw 5 KBRead 6 Reads 7 KBWrit
8 Writes 9 KBIn 10 PktIn 11 KBOut 12 PktOutAnd from there you get the numbers of the columns to reference in the -cols argument.
To include the timestamp, use -oT in the -command and offset the column numbers by 1:
Command
colmux -addr 'rnmcluster02-node0[1-4]' -user root -cols 2,6,8 -command '-oT'Output
sys Reads Writes
#Time node01 node02 node03 node04 | node01 node02 node03 node04 | node01 node02 node03 node04
22:24:50 0 0 0 0 | 0 0 0 0 | 0 0 0 0
22:24:51 1 0 0 0 | 0 0 0 0 | 0 0 0 0
22:24:52 0 0 0 0 | 0 0 0 0 | 0 16 0 16
22:24:53 1 0 0 0 | 0 0 0 0 | 36 0 16 0
22:24:54 0 0 0 1 | 0 0 0 0 | 0 0 0 0
22:24:55 0 0 0 0 | 0 0 0 0 | 0 20 32 20NB There’s a bug with colmux 4.8.2 that prevents you accessing the first metric with -cols when you also enable timestamp -oT – details here.
Specifying additional metrics 🔗
Collectl (which is what colmux calls to get the data) can fetch metrics from multiple subsystems on a node. You can access all of these through colmux too. By default when you run colmux you get cpu, disk and network but you can specify others using the -s argument followed by the subsystem identifier.
To examine the available subsystems run collectl on one of the target nodes:
[root@rnmcluster02-node01 ~]# collectl --showsubsys
The following subsystems can be specified in any combinations with -s or
--subsys in both record and playbackmode. [default=bcdfijmnstx]
These generate summary, which is the total of ALL data for a particular type
b - buddy info (memory fragmentation)
c - cpu
d - disk
f - nfs
i - inodes
j - interrupts by CPU
l - lustre
m - memory
n - network
s - sockets
t - tcp
x - interconnect (currently supported: OFED/Infiniband)
y - slabsFrom the above list we can see that if we want to also show memory detail alongside CPU we need to include m and c in the subsystem list:
Command
colmux -addr 'rnmcluster02-node0[1-4]' -user root -command '-scm'Output
# Tue Dec 2 08:02:38 2014 Connected: 4 of 4
# <--------CPU--------><-----------Memory----------->
#Host cpu sys inter ctxsw Free Buff Cach Inac Slab Map
rnmcluster02-node02 1 0 19 18 33M 15M 345M 167M 30M 56M
rnmcluster02-node04 0 0 30 24 32M 15M 345M 167M 30M 56M
rnmcluster02-node03 0 0 30 36 32M 15M 345M 165M 30M 56M
rnmcluster02-node01 0 0 16 16 29M 15M 326M 167M 27M 81MChanging the sample frequency 🔗
To change the sample frequency use the -i syntax in -command:
Command
colmux -addr 'rnmcluster02-node0[1-4]' -user root -command '-scm -i10 -oT' -cols 2,4Samples every 10 seconds:
sys ctxsw
#Time node01 node02 node03 node04 | node01 node02 node03 node04
08:06:29 -1 -1 -1 -1 | -1 -1 -1 -1
08:06:39 -1 -1 -1 -1 | -1 -1 -1 -1
08:06:49 0 0 0 0 | 14 13 15 19
08:06:59 0 0 0 0 | 13 13 17 21
08:07:09 0 0 0 0 | 19 18 15 24
08:07:19 0 0 0 0 | 13 13 15 19
08:07:29 0 0 0 0 | 13 13 14 19
08:07:39 0 0 0 0 | 12 13 13 19Column width 🔗
Add the -colwidth argument
Command
colmux -addr 'rnmcluster02-node0[1-4]' -user root -command '-scm' -cols 1 -colwidth 20Output
cpu
rnmcluster02-node01 rnmcluster02-node02 rnmcluster02-node03 rnmcluster02-node04
-1 -1 -1 -1
-1 -1 -1 -1
1 0 0 0
0 0 0 0
0 1 0 0
0 0 1 0
1 0 1 0
0 1 0 0Playback 🔗
As well as running interactively, collectl can run as a service and record metric samples to disk. Using colmux you can replay these from across the cluster.
Within the -command, include -p and the path to the collectl log files (assumes that it is the same on each host). As with real-time mode, for different subsystems change the flags after -s
Command
colmux -addr 'rnmcluster02-node0[1-4]' -user root -command '-p /var/log/collectl/*20141201* -scmd -oD'Output
[...]
# 21:48:50 Reporting: 4 of 4
# <--------CPU--------><-----------Memory-----------><----------Disks----------->
#Host Date Time cpu sys inter ctxsw Free Buff Cach Inac Slab Map KBRead Reads KBWrit Writes
rnmcluster02-node04 20141201 21:48:50 0 0 17 15 58M 10M 340M 162M 30M 39M 0 0 1 0
rnmcluster02-node03 20141201 21:48:50 0 0 11 13 58M 10M 340M 160M 30M 39M 0 0 0 0
rnmcluster02-node02 20141201 21:48:50 0 0 11 15 58M 10M 340M 163M 29M 39M 0 0 1 0
rnmcluster02-node01 20141201 21:48:50 0 0 12 14 33M 12M 342M 157M 27M 63M 0 0 1 0
# 21:49:00 Reporting: 4 of 4
# <--------CPU--------><-----------Memory-----------><----------Disks----------->
#Host Date Time cpu sys inter ctxsw Free Buff Cach Inac Slab Map KBRead Reads KBWrit Writes
rnmcluster02-node04 20141201 21:49:00 0 0 17 15 58M 10M 340M 162M 30M 39M 0 0 4 0
rnmcluster02-node03 20141201 21:49:00 0 0 13 14 58M 10M 340M 160M 30M 39M 0 0 5 0
rnmcluster02-node02 20141201 21:49:00 0 0 12 14 58M 10M 340M 163M 29M 39M 0 0 1 0
rnmcluster02-node01 20141201 21:49:00 0 0 12 15 33M 12M 342M 157M 27M 63M 0 0 6 0
# 21:49:10 Reporting: 4 of 4
# <--------CPU--------><-----------Memory-----------><----------Disks----------->
#Host Date Time cpu sys inter ctxsw Free Buff Cach Inac Slab Map KBRead Reads KBWrit Writes
rnmcluster02-node04 20141201 21:49:10 0 0 23 23 58M 10M 340M 162M 30M 39M 0 0 1 0
rnmcluster02-node03 20141201 21:49:10 0 0 19 24 58M 10M 340M 160M 30M 39M 0 0 2 0
rnmcluster02-node02 20141201 21:49:10 0 0 18 23 58M 10M 340M 163M 29M 39M 0 0 2 1
rnmcluster02-node01 20141201 21:49:10 0 0 18 24 33M 12M 342M 157M 27M 63M 0 0 1 0
[...]Restrict the time frame by adding to -command the arguments -from and/or -thru
[oracle@rnm-ol6-2 ~]$ colmux -addr 'rnmcluster02-node0[1-4]' -user root -command '-p /var/log/collectl/*20141201* -scmd -oD --from 21:40:00 --thru 21:40:10'
# 21:40:00 Reporting: 4 of 4
# <--------CPU--------><-----------Memory-----------><----------Disks----------->
#Host Date Time cpu sys inter ctxsw Free Buff Cach Inac Slab Map KBRead Reads KBWrit Writes
rnmcluster02-node04 20141201 21:40:00 0 0 16 14 59M 10M 340M 162M 30M 39M 0 0 0 0
rnmcluster02-node03 20141201 21:40:00 0 0 12 14 58M 10M 340M 160M 30M 39M 0 0 8 1
rnmcluster02-node02 20141201 21:40:00 0 0 12 15 59M 10M 340M 162M 30M 39M 0 0 6 1
rnmcluster02-node01 20141201 21:40:00 0 0 13 16 56M 11M 341M 156M 27M 42M 0 0 7 1
# 21:40:10 Reporting: 4 of 4
# <--------CPU--------><-----------Memory-----------><----------Disks----------->
#Host Date Time cpu sys inter ctxsw Free Buff Cach Inac Slab Map KBRead Reads KBWrit Writes
rnmcluster02-node04 20141201 21:40:10 0 0 26 33 59M 10M 340M 162M 30M 39M 1 0 10 2
rnmcluster02-node03 20141201 21:40:10 0 0 20 31 58M 10M 340M 160M 30M 39M 0 0 4 1
rnmcluster02-node02 20141201 21:40:10 0 0 23 35 59M 10M 340M 162M 30M 39M 3 0 9 2
rnmcluster02-node01 20141201 21:40:10 0 0 23 37 56M 11M 341M 156M 27M 42M 4 1 4 1
[oracle@rnm-ol6-2 ~]$colmux reference 🔗
You can find more about colmux from the website:
as well as the built in man page man colmux
Visualising collectl data with colplot 🔗
As a little bonus to the above, colmux is part of the collectl-utils package, which also includes colplot, a gnuplot-based web tool that renders collectl data into graphs. It’s pretty easy to set up, running under Apache just fine and just needing gnuplot installed if you haven’t already. It can report metrics across a cluster if you make sure that you first make each node’s collectl data available locally to colplot.

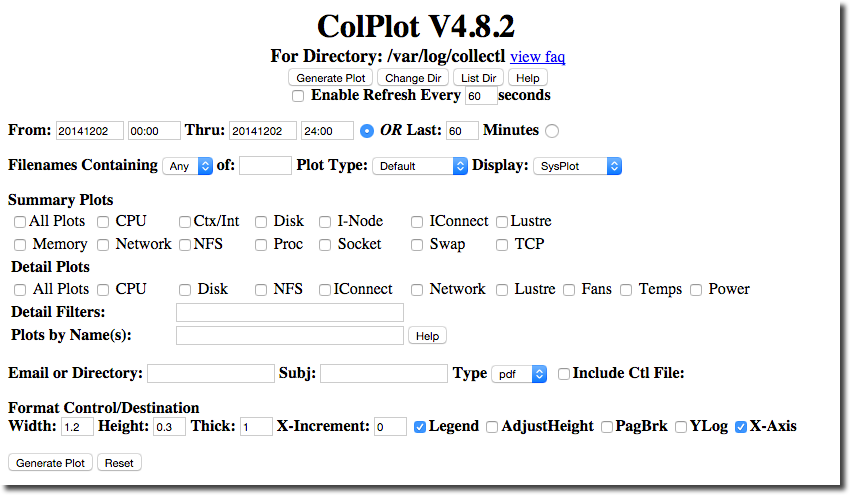

Navigating to the web page shows the interface from which you can trigger graph plots based on the collectl data available:

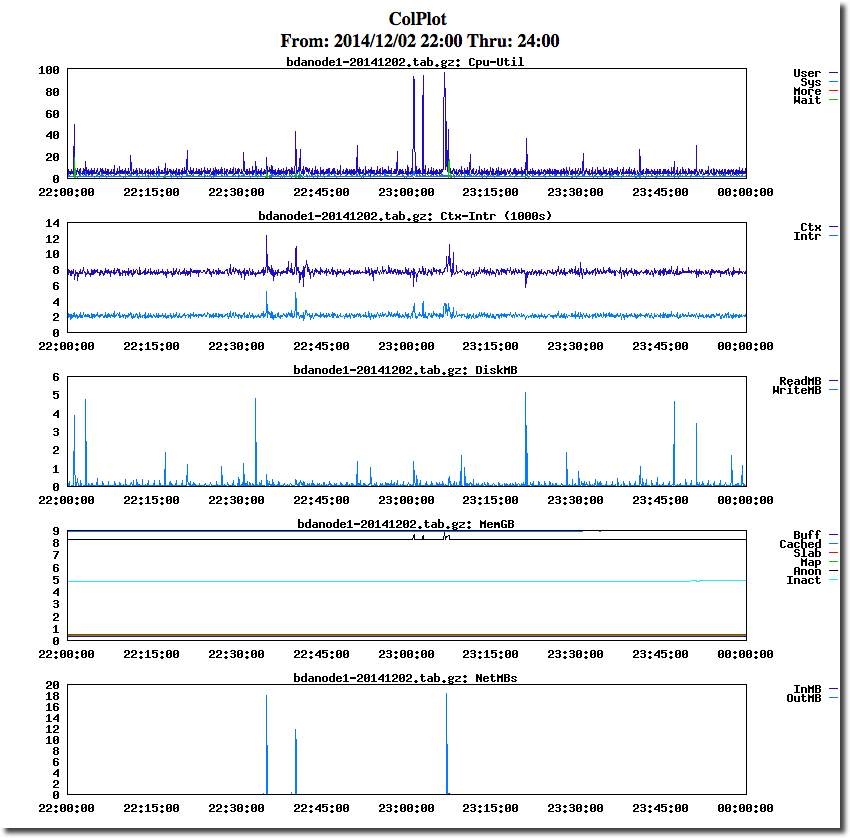

colplot’s utilitarian graphs are a refreshing contrast to every webapp that is built nowadays promising “beautiful” visualisations (which no doubt the authors are “passionate” about making “awesome”):

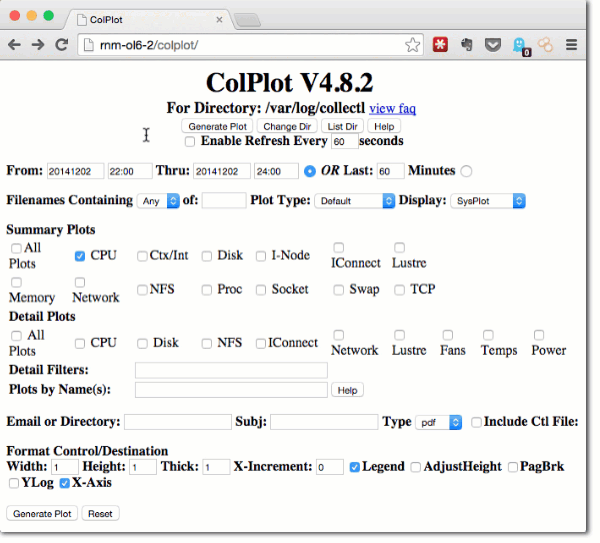

The graphs are functional and can be scaled as needed, but each change is a trip back to the front page to tweak options and re-render:
